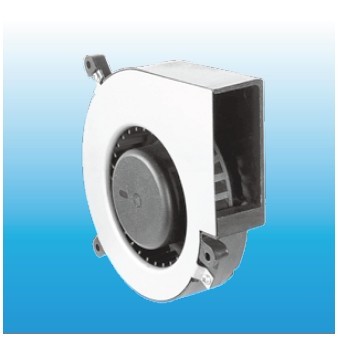

名称：BFB75x75x30MM鼓风机
微信：13312956352
手机：13312956352
座机：0755-28058598
在线咨询：
产品详情
| 75 x 75 x 30 MM | |||||||||||
| MODEL |
Rated Voltage |
Operating Voltage Range |
Input Current |
Input Power |
Speed |
Maximum Air Flow |
Maximum Air Pressure |
Noise | |||
| PART NO. | FUNCTION | VDC | VDC | Amp | Watt | R.P.M. | m3 /min | CFM | mmH2O | IN H2O | dB-A |
| BFB0712L | -R00 / -F00 | 12 | 7.0 to 13.8 | 0.06 | 0.72 | 1900 | 0.198 | 7.00 | 4.00 | 0.157 | 26.0 |
| BFB0724L | -R00 / -F00 | 24 | 14.0 to 27.6 | 0.05 | 1.20 | 1900 | 0.198 | 7.00 | 4.00 | 0.157 | 26.0 |
| BFB0712M | -R00 / -F00 | 12 | 7.0 to 13.8 | 0.13 | 1.56 | 2350 | 0.255 | 9.00 | 6.80 | 0.268 | 32.0 |
| BFB0724M | -R00 / -F00 | 24 | 14.0 to 27.6 | 0.07 | 1.68 | 2350 | 0.255 | 9.00 | 6.80 | 0.268 | 32.0 |
| BFB0712H | -R00 / -F00 | 12 | 7.0 to 13.8 | 0.22 | 2.64 | 2900 | 0.320 | 11.30 | 12.20 | 0.480 | 38.0 |
| BFB0724H | -R00 / -F00 | 24 | 14.0 to 27.6 | 0.12 | 2.88 | 2900 | 0.320 | 11.30 | 12.20 | 0.480 | 38.0 |
