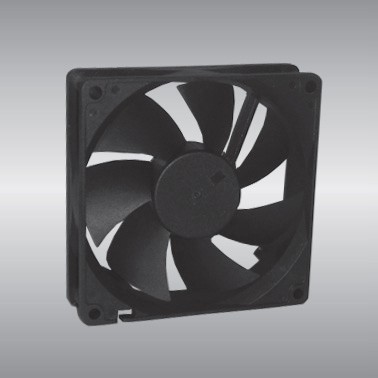

名称：92×92×25mm DC散热风机
微信：13312956352
手机：13312956352
座机：0755-28058598
在线咨询：
产品详情
| 品牌 | 轴承 | 电压 | 启动电压 | 电流 | 功率 | 转速 | 风量 | 静压 | 噪音 | ||
| 型号 | B/S | V | V | A | W | RPM | m3/min | CFM | mm-H2O | In-H2O | dba |
| SP92B12L-25DL | B / S | 12 | 7.0~13.2 | 0.09 | 1.08 | 2100 | 1.11 | 39.2 | 2.2 | 0.09 | 25.0 |
| SP92B24L-25DL | B / S | 24 | 14.0~26.4 | 0.06 | 1.44 | 2100 | 1.11 | 39.2 | 2.2 | 0.09 | 25.0 |
| SP92B48L-25DL | B / S | 48 | 28.0~56.0 | 0.05 | 2.40 | 2100 | 1.11 | 39.2 | 2.2 | 0.09 | 25.0 |
| SP92B12M-25DL | B / S | 12 | 7.0~13.2 | 0.11 | 1.32 | 2450 | 1.27 | 44.8 | 2.9 | 0.11 | 30.0 |
| SP92B24M-25DL | B / S | 24 | 14.0~26.4 | 0.08 | 1.92 | 2450 | 1.27 | 44.8 | 2.9 | 0.11 | 30.0 |
| SP92B48M-25DL | B / S | 48 | 28.0~56.0 | 0.06 | 2.88 | 2450 | 1.27 | 44.8 | 2.9 | 0.11 | 30.0 |
| SP92B12H-25DL | B / S | 12 | 7.0~13.2 | 0.14 | 1.68 | 2850 | 1.48 | 52.1 | 3.9 | 0.16 | 34.0 |
| SP92B24H-25DL | B / S | 24 | 14.0~26.4 | 0.13 | 3.12 | 2850 | 1.48 | 52.1 | 3.9 | 0.16 | 34.0 |
| SP92B48H-25DL | B / S | 48 | 28.0~56.0 | 0.08 | 3.84 | 2850 | 1.48 | 52.1 | 3.9 | 0.16 | 34.0 |
| SP92B12U-25DL | B / S | 12 | 7.0~13.2 | 0.20 | 2.40 | 3200 | 1.65 | 58.3 | 4.7 | 0.18 | 38.0 |
| SP92B24U-25DL | B / S | 24 | 14.0~26.4 | 0.15 | 3.60 | 3200 | 1.65 | 58.3 | 4.7 | 0.18 | 38.0 |
| SP92B48U-25DL | B / S | 48 | 28.0~56.0 | 0.12 | 5.76 | 3200 | 1.65 | 58.3 | 4.7 | 0.18 | 38.0 |
| SP92B12HU-25DL | B / S | 12 | 7.0~13.2 | 0.35 | 4.20 | 3800 | 1.96 | 69.2 | 6.6 | 0.26 | 45.0 |
| SP92B24HU-25DL | B / S | 24 | 14.0~26.4 | 0.20 | 4.80 | 3800 | 1.96 | 69.2 | 6.6 | 0.26 | 45.0 |
| SP92B48HU-25DL | B / S | 12 | 7.0~13.2 | 0.41 | 4.92 | 4200 | 2.29 | 81.0 | 9.2 | 0.40 | 49.0 |
