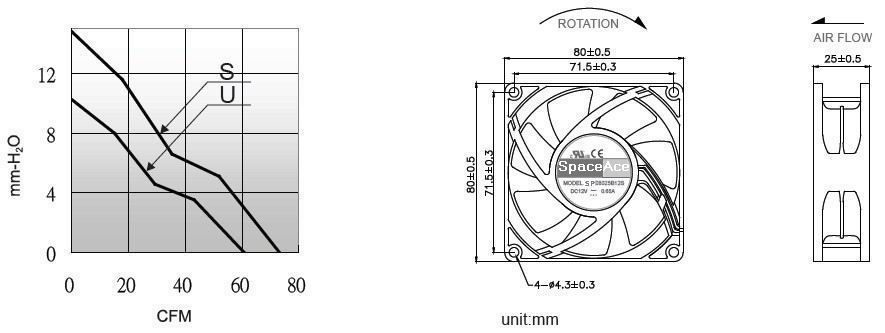

名称：80×80×25mm DC散热风机
微信：13312956352
手机：13312956352
座机：0755-28058598
在线咨询：
产品详情
| 品牌 | 轴承 | 电压 | 启动电压 | 电流 | 功率 | 转速 | 风量 | 静压 | 噪音 | ||
| 型号 | B/S | V | V | A | W | RPM | m3/min | CFM | mm-H2O | In-H2O | dba |
| SP80B12L-25DL | B / S | 12 | 7.0~13.2 | 0.14 | 1.68 | 2700 | 0.98 | 34.6 | 3.10 | 0.12 | 28.0 |
| SP80B24L-25DL | B / S | 24 | 14.0~26.4 | 0.08 | 1.92 | 2700 | 0.98 | 34.6 | 3.10 | 0.12 | 28.0 |
| SP80B48L-25DL | B / S | 48 | 28.0~56.0 | 0.05 | 2.40 | 2700 | 0.98 | 34.6 | 3.10 | 0.12 | 28.0 |
| SP80B12M-25DL | B / S | 12 | 7.0~13.2 | 0.15 | 1.80 | 3000 | 1.09 | 38.5 | 3.90 | 0.15 | 31.0 |
| SP80B24M-25DL | B / S | 24 | 14.0~26.4 | 0.10 | 2.40 | 3000 | 1.09 | 38.5 | 3.90 | 0.15 | 31.0 |
| SP80B48M-25DL | B / S | 48 | 28.0~56.0 | 0.07 | 3.36 | 3000 | 1.09 | 38.5 | 3.90 | 0.15 | 31.0 |
| SP80B12H-25DL | B / S | 12 | 7.0~13.2 | 0.23 | 2.76 | 3600 | 1.31 | 46.1 | 5.40 | 0.21 | 36.0 |
| SP80B24H-25DL | B / S | 24 | 14.0~26.4 | 0.16 | 3.84 | 3600 | 1.31 | 46.1 | 5.40 | 0.21 | 36.0 |
| SP80B48H-25DL | B / S | 48 | 28.0~56.0 | 0.07 | 3.36 | 3600 | 1.31 | 46.1 | 5.40 | 0.21 | 36.0 |
| SP80B12U-25DL | B / S | 12 | 7.0~13.2 | 0.32 | 3.84 | 4300 | 1.56 | 55.0 | 7.40 | 0.29 | 40.0 |
| SP80B24U-25DL | B / S | 24 | 14.0~26.4 | 0.23 | 5.52 | 4300 | 1.56 | 55.0 | 7.40 | 0.29 | 40.0 |
| SP80B48U-25DL | B / S | 48 | 28.0~56.0 | 0.11 | 5.28 | 4300 | 1.56 | 55.0 | 7.40 | 0.29 | 40.0 |
| SP80B12HU-25DL | B / S | 12 | 7.0~13.2 | 0.52 | 6.24 | 5000 | 1.84 | 65.2 | 10.40 | 0.41 | 44.0 |
